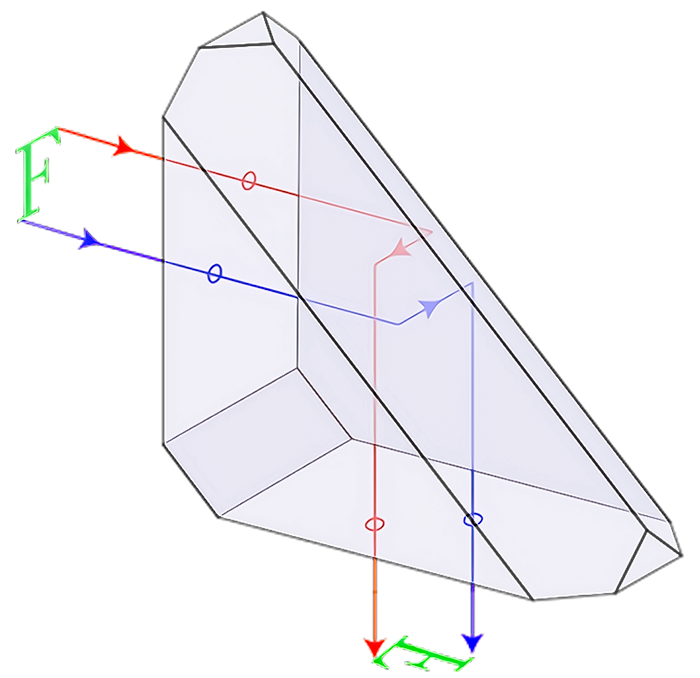

An Amici roof prism is a type of reflecting prism used to deviate a beam of light by 90° while simultaneously inverting the image.
It is commonly used in the eyepieces of telescopes as an image erecting system.
It is sometimes called an Amici prism or right angle roof prism.
Common Specifications
| Material | H-K9L | Smoothness | 60-40 | ||||||||
| Appearance tolerance | ±0.1mm | Clear Aperture | >90% of central diameter | ||||||||
| Angular tolerance | ±3’ | Chamfer | 0.3*45° | ||||||||
| Facial shape | λ4@632.8mn | Coating | According to customer requirements | ||||||||
