A reflective prism is composed of a pair of high-precision right angled prisms glued together, with a dielectric film coated on the inclined surface of one prism and an anti reflective film coated on the outer surface.
Main application areas: commonly used digital devices: cameras, closed-circuit television, projectors, digital cameras, digital camcorders, CCD lenses.
The standard product specifications are shown in the table below, and we can also customize various specifications of right angle prisms for customers.
Standard product specifications

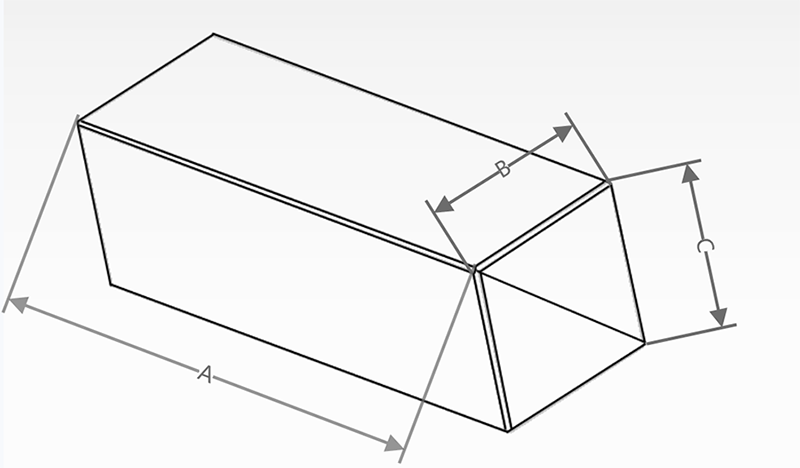

| Long prism (size and coating can be customized according to user needs) unit mm | |||||
| Serial number | Product number | Material Science | Side length A | Side width B | High C |
| 1 | TP-001 | K9 | 40-0.5 | 15±0.1 | 15±0.1 |
| 2 | TP-002 | K9 | 50±0.2 | 20±0.1 | 20±0.1 |
| 3 | TP-003 | K9 | 82±0.2 | 17±0.1 | 17±0.1 |
| 4 | TP-004 | K9 | 100±0.2 | 50±0.1 | 50±0.1 |
| 5 | TP-005 | K9 | 150±0.2 | 80±0.1 | 80±0.1 |
| 6 | TP-006 | K9 | 150±0.2 | 25±0.1 | 25±0.1 |
| 7 | TP-007 | K9 | 310±0.3 | 20±0.1 | 20±0.1 |
